In environments where safety is critical, like chemical plants, oil fields, or mining facilities, ensuring the right lighting system is more than just a matter of efficiency—it’s a matter of survival. But did you know that the wrong choice of lighting in these hazardous zones could lead to devastating consequences? This is where Class 1 Division 2 LED lighting comes into play.

In this blog, we’ll dive into what Class 1 Div 2 LED lighting is, why choosing the best and high-quality fixtures is critical for your operations, and how they meet the demanding needs of various industries. We’ll also showcase a specific product, the K-COB LED Explosion Proof Light, a top-tier example of Class 1 Div 2 LED lighting, which is designed for some of the most extreme industrial environments.

What is Class 1 Division 2 LED Lighting?

Defining Class 1 Division 2

Class 1 Division 2 (Class I, Div 2) refers to a classification of hazardous locations as defined by organizations like the National Electrical Code (NEC). A Class 1 location contains flammable gases, vapors, or liquids that could be present under normal or abnormal conditions. The “Division 2″ part of the classification indicates that these materials are present under abnormal conditions—such as equipment leaks or failures. In simpler terms, Class 1 Div 2 lighting is designed to withstand environments where an explosive atmosphere is possible but not always present.

How LED Technology Enhances Safety

LED lighting, particularly designed for Class 1 Div 2, has revolutionized how industries light up hazardous environments. LEDs are energy-efficient, durable, and have a longer lifespan than traditional lighting solutions like incandescent or fluorescent bulbs. Importantly, they produce significantly less heat, which is a critical factor in preventing explosions in volatile atmospheres.

When it comes to Class 1 Div 2 settings, these LEDs are enclosed in specially designed housings that prevent the internal electronics from igniting gases or vapors in the air. These fixtures must meet strict standards, such as EXd explosion proof standards, to ensure they can function safely in hazardous zones.

Why Choose High-Quality Class 1 Div 2 LED Lighting?

Safety First: The Importance of Reliable Equipment

In hazardous environments, where even a small mistake can lead to catastrophic explosions, the importance of using reliable, high-quality lighting cannot be overstated. Inferior lighting solutions can generate excess heat, create electrical sparks, or have design flaws that allow gases and vapors to enter the lighting enclosure. Choosing a certified Class 1 Div 2 LED lighting system ensures that you meet all safety regulations, reducing risks for employees and facilities.

For example, the K-COB LED Explosion Proof Light offers a superior design with three individual chambers for the PSU, cable, and light source. This separation enhances safety by ensuring that electrical components remain isolated, reducing the risk of sparking in volatile environments.

Cost Efficiency: Durability and Longevity

Investing in high-quality Class 1 Div 2 LED lighting can save you money in the long run. While upfront costs might seem higher than traditional lighting systems, these LEDs offer long lifespans, reduced energy consumption, and lower maintenance requirements. LEDs in hazardous areas like chemical workshops or oil fields must endure harsh conditions, and inferior products could fail prematurely, leading to costly repairs and replacements. High-quality LED lights, like those from CAS-CERAMIC OPTOELECTRONICS TECHNOLOGY CO., Ltd, are built to withstand extreme conditions, including heat, cold, and corrosive atmospheres.

Compliance with Industry Standards

Another crucial reason for selecting top-tier Class 1 Div 2 LED lighting is regulatory compliance. Failing to meet industry standards not only puts your facility at risk but can also result in hefty fines and legal issues. LED explosion-proof lights, like the K-COB LED Explosion Proof Light, adhere to EXd explosion-proof standards and are suitable for environments with explosive gases like IIA, IIB, and IIC, and temperature ranges between T1 and T6.

Industrial Needs and Solutions for Class 1 Div 2 LED Lighting

Chemical Workshops: Reliable Lighting for Hazardous Processes

Chemical plants often deal with highly volatile substances that require precision and safety during processing. Adequate lighting is essential for workers to perform tasks efficiently, but it also needs to be designed to prevent any chance of sparking or overheating. Class 1 Div 2 LED lights are designed to operate safely in environments where chemicals and gases could leak during regular operations. A product like the K-COB LED Explosion Proof Light, with a unique phosphor ceramic LED light source, offers high reliability and extremely low lumen decay, meaning it maintains its performance for much longer than traditional lighting.

Oil Fields: Illuminating Under Harsh and Explosive Conditions

In the oil and gas industry, workers are often exposed to explosive gases, making the environment highly dangerous if the wrong lighting system is used. Class 1 Div 2 LED lighting solutions are tailored for such extreme conditions. Whether it’s an offshore drilling platform or a refinery, these LED lights are designed to endure fluctuating temperatures, corrosive environments, and heavy vibrations. The K-COB LED Explosion Proof Light, with its 90-120° beam angles and adjustable color temperatures (2200K to 6500K), ensures that workers have optimal visibility without compromising safety.

Mining: Lighting Solutions Built to Last

The mining industry also presents unique challenges for lighting. Dust, chemicals, and gases can all be present in confined spaces, making it critical that the lighting system is not only durable but explosion-proof. Miners rely on powerful lighting to navigate these dark and often dangerous underground environments. With a luminous efficacy of 90-100lm/W and available wattages from 100W to 200W, the K-COB LED Explosion Proof Light offers both the power and efficiency needed in mining applications.

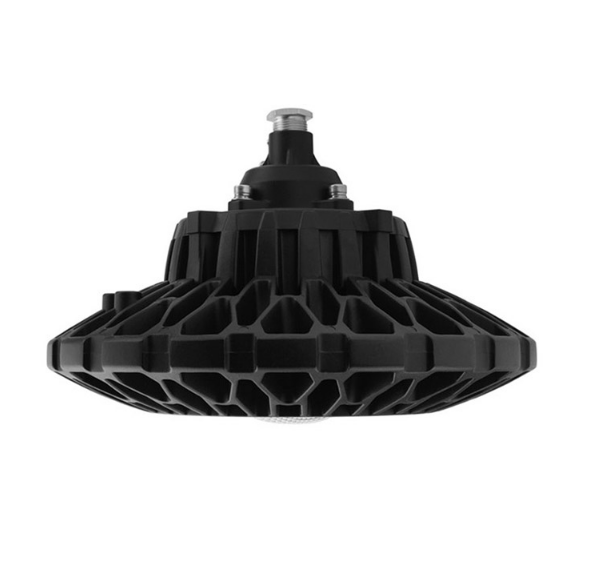

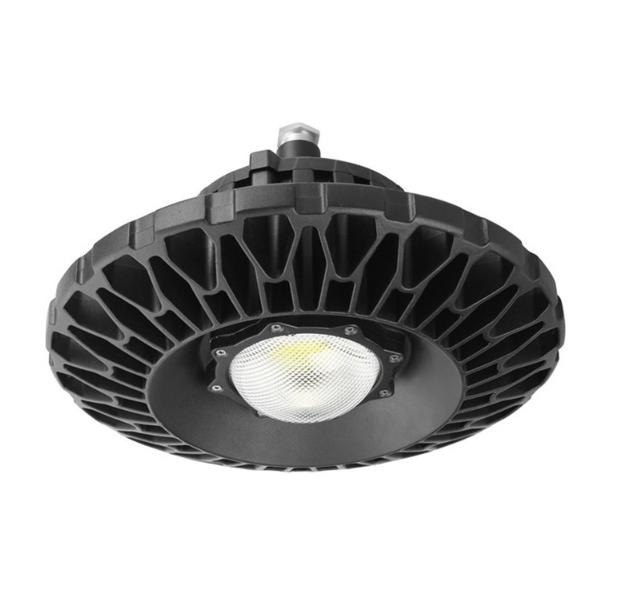

Product Example: K-COB LED Explosion Proof Light (100-200W)

Key Features

The K-COB LED Explosion Proof Light by CAS-CERAMIC OPTOELECTRONICS TECHNOLOGY CO., Ltd is an outstanding example of what high-quality Class 1 Div 2 LED lighting can offer. Let’s break down the product:

Power Range: Available in 100W, 150W, and 200W models, providing different levels of illumination depending on your needs.

Input Voltage: Operates between AC90-305V, making it suitable for a variety of industrial applications.

Color Temperature (CCT): With an adjustable CCT range from 2200K to 6500K, this LED can provide warm to cool lighting, adaptable to different work environments.

CRI (Color Rendering Index): With a CRI between 70-80, these lights ensure accurate color representation, which is crucial for tasks requiring precision.

Lumen Output: Produces 9000 to 18000 lumens, offering powerful illumination for large industrial spaces.

Beam Angle: Available in 90° or 120° configurations, allowing for customizable light distribution.

Applications

This LED light is certified for use in explosive gas environments, classified as IIA, IIB, IIC, with a temperature rating from T1 to T6. This makes it suitable for a wide range of hazardous environments, including chemical workshops, oil fields, and mines. The three-chamber design separates the power supply, cable, and light source, enhancing safety and ensuring long-term reliability.

Conclusion: Invest in Quality for Long-Term Safety and Efficiency

Choosing the right lighting for hazardous environments is not just a matter of meeting regulations—it’s about protecting lives and ensuring operational efficiency. Class 1 Div 2 LED lighting, such as the K-COB LED Explosion Proof Light, offers the perfect balance of safety, durability, and performance. Whether you’re operating in a chemical workshop, oil field, or mining facility, investing in high-quality, certified lighting solutions is essential for both safety and efficiency.

When lives are on the line, trust only the best. With its robust design, exceptional performance, and compliance with stringent standards, the K-COB LED Explosion Proof Light is an excellent choice for any industrial application requiring Class 1 Div 2 LED lighting.
