Fujian CAS-Ceramic Optoelectronics Technology Co.,Ltd services all outdoor areas of the lighting. We construct sports lighting, commercial lighting systems,searchlighting, and provide the best solution for minimum light intrusion. Fish Attracting Light , Baseball Court Lights , High Mast Light Suppliers , Fujian CAS-Ceramic Optoelectronics Technology Co.,Ltd has been in business since 2013 supplying sports lighting, high mast flood lights, underwater led lights for fishing, searchlights and more.

Cob Light Factories – K-COB Phosphor Ceramic sport lighting cob led chips 400W-700W – CAS-Ceramic Detail:

What is the difference between LED and K-COB LED?

LED (light-emitting diode) is now a very common technology today. With the advantages of low energy consumption, long life-span, and instant start-up, the fixture with LED light source has replaced the traditional MHL (metal halide lamp) and HPS(high-pressure sodium) lamp on the market gradually.

LED is used to divide into SMD(surface mounting device) and COB(chip on board), the biggest difference between LED COB and SMD is that COB has times more diode in the same PCB surface. It means the COB chip has a higher light density, directivity, and enhanced optical control. And this is the reason why COB is popular in high mast lighting areas such as stadium lighting, search lighting, port lighting .,etc.

The application of high power cob led chips

陶瓷表面坚硬vs-硅胶cob会老化裂开
cob-LED--CHIPS-CERTIFICATE-AND-TEST-REPORT

LM 80 TEST REPORT AND 4 CORE PATENT CERTIFICATE

Do K-COB get hot?

K-COB LED CHIPS has patented dual-channel heat sink technology. The phosphor ceramic provides additional heat conductive channels. The heat dissipates from the top of the phosphor ceramic and the bottom of the PCB board. The K-COB led chips with high reliability and high performance of light intensity due to the heat sink are better than common led chips.

中科芯源LED-光源原图(3)

We separate two main heat source of LED diode and phosphor by this dual heatsinking channel design. And it helps to the reduction of chip junction temperature effectively.

LED diode and phosphor

Specification

Item No.	Rated Power(W)	Forward Voltage Vf(V)	Rated Currency IF(mA)	Max Input currency(mA)	CRI(Ra)	Color Temperature(K)	Efficiency Im/w Based on 70ra
XY-L5640	400	124	3000	3150	70/80/90	2000-6500	165lm/w
XY-L5650	500	124	3700	4050	70/80/90	2000-6500	160lm/w
XY-L5660	600	124	4300	4800	70/80/90	2000-6500	155lm/w
XY-L5670	700	124	5300	5500	70/80/90	2000-6500	150lm/w

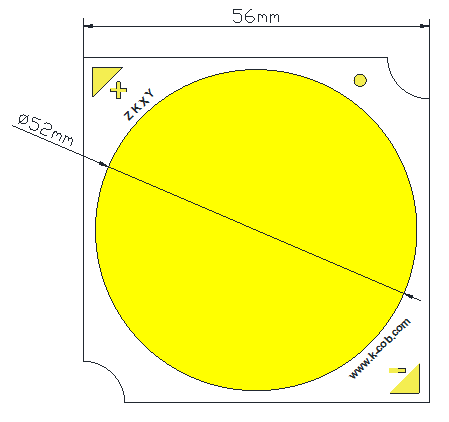

DIMENSIONS DRAWING

56mm KCOB size

*Size & Circuit is customizable based on the requirement

How do you wire LED COBs?

How-to-install-led-chips-on-fixtures

1. Apply an appropriate amount of thermal grease to the bottom of the lamp housing
2. Put the lamp bead on the place where thermal grease is applied
3. Weld the wires to the positive and negative poles of the lamp beads
4. Put the corresponding bracket on the lamp bead, (note: the yellow part cannot be pressed)
5. Fix the bracket with screws
6. Screw the lamp cover of the lamp, and the installation is finished.

What’s the price of K-cob led chips?

Different from traditional silica gel COB and SMD light sources, phosphor ceramic COB is a new generation of light sources with higher light intensity and safer and more reliable quality. Since K-COB LED adopts self-developed technology, we already have a mature technology and own serval production line, compared with international big brands cree, bridglux, citizen, our cost performance is higher. If you need, you can leave us a message, our lighting experts will give you a professional reply within 24 hours.

K-COB LED CHIPS RELATED PRODUCTS

Product detail pictures:

Related Product Guide:

K-COB adheres to the highest production, qualification, safety and performance standards. KCOB is an ISO 9001certified manufacturer.All of our products are with CE approval and RoHS complianceOver 90% of the products are exported to Europe, North America, Asia and other areas. Cob Light Factories – K-COB Phosphor Ceramic sport lighting cob led chips 400W-700W – CAS-Ceramic , The product will supply to all over the world, such as: Barcelona, Canberra, Bangkok, Benefits of led outdoor sports lighting&led flood lights:(1)Provides uniform light distributions(2)High performance and low light pollution.(3)minimising glare to increase the playing experience(4)Dark skies friendly fitting ideal for projects nearby residential areas with specific light regulations, with low light pollution ULOR 0%.Most LED led outdoor sports lighting/led flood lights used by K-COB provide a 5 year manufacturer’s warranty.
